4A310-10 Airtac Type 5/2 Way Pneumatic Air Pilot Control Valve
A pilot valve is on duty to control a limited-flow control feed to a separate piloted valve. They can also be used in conjunction with solenoid valves. Piloted air valves offer a high level of control over an increased flow feed, negating the need for a much larger force.These valves are more powerful than electrical solenoids or actuators. This makes them ideal for remote and miniature applications where you need higher airflow or lower power.
Technical Data of 4A300 Series Pneumatic Air Pilot Valve:
| | | | 4A330C-08 4A330E-08 4A330P-08 | | | 4A330C-10 4A330E-10 4A330P-10 |
| | Air (to be filtered by 40 μm filter element) |
| | |
| | | in=out=3/8'', exhaust=1/4'' |
| Orifice Size | 4A310-10, 4A320-10: 28.0mm² (Cv=1.65) 4A330C-10: 21.3mm² (Cv=1.25) |
| Vlave Type | | 5 way 3 postion | | |
| Operating Pressure | 0.15 to 0.8 MPa (21 to 114 psi) |
| Proof Pressure | |
| Temperature | |
| Body Material | |
| Max Frequency | | | | |

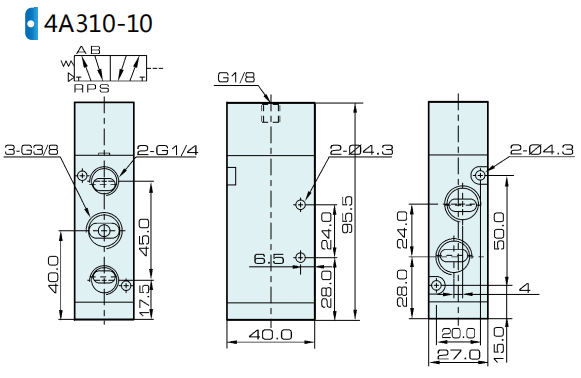

Dimension of 4A310-10 Pneumatic Air Pilot Valve:
Production Video of BRANDO Pneumatic Valves:
More Pneumatic Products for you to choose:
| 2/2 Way Pneumatic Valves | 3/2 Way Pneumatic Valves | 5/2 Way Pneumatic Valves | 5/3 Way Pneumatic Valves |
| | | |
| Namur Solenoid Valves | Air Pilot Valves | Pneumatic Cylinders | Silencers and Fittings |
| |  |   |
